SEGREGATED GARBAGE CHUTES

SEGREGATION BY USING BISORTERS, TRISORTERS, QUADRASORTERS
    Segregated Garbage chutes Segregated Garbage chutes
  • Municipal norms to segregate garbage in "Dry"(recycling) & "Wet" (Biodegradable) garbage.
  • Facilitates segregated garbage collection by using one chute with Bisorters, Trisorters, Quadrasorters depending on types of garbage.
  • Fully automatic, one user at a time
  • All hoppers are locked normally.

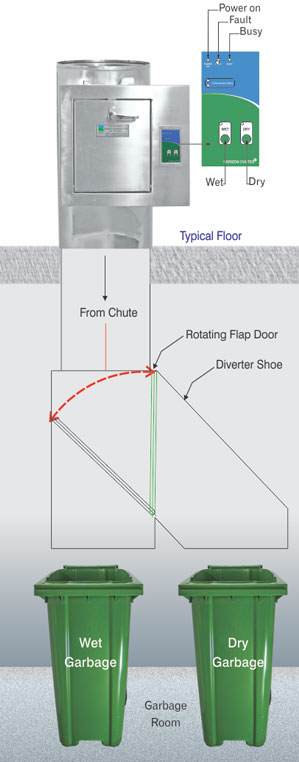

Operational Sequence
  • Press any button "Dry" or "Wet"
  • Busy indicator and hoppers remain locked for all floors.
  • Segregated garbage chute converts to respective mode "Dry" or "Wet" by rotating flap door in the garbage room.
  • Operated hopper unlocked with indication of selected garbage.
  • Disposed bag goes to appropriate trolley.
  • Auto closing hopper resets the system for next use.
  • Total change over time of 10 seconds
Salient Features
  • A step forward to Eco–Friendly buildings.
  • Single point collection of segregated garbage.
  • Hopper as well Controller is UL rated for user safety.
  • Horizon offers Bisorters (for Two types of garbage)
  • Trisorters (for Three types of garbage)
  • Quadrasorters (for Four types of garbage)
PLEASE NOTE THAT WE ARE OFFERING THESE SYSTEMS IN LINE WITH NFPA 82 WHICH ASKS FOR
  • 90 min fire rated UL Labelled 10B chute type doors
  • Controller for the chute systems should be UL Listed
  • Control Panel for the chute system should be as per UL 508A
Segregated Garbage chutes
